Why Australia has so much uranium

By Ian Lambert, Subhash Jaireth, Aden McKay and Yanis Miezitis

Australia's vast resources of uranium amount to a staggering 40% of the world's total identified resources of uranium recoverable at low cost.

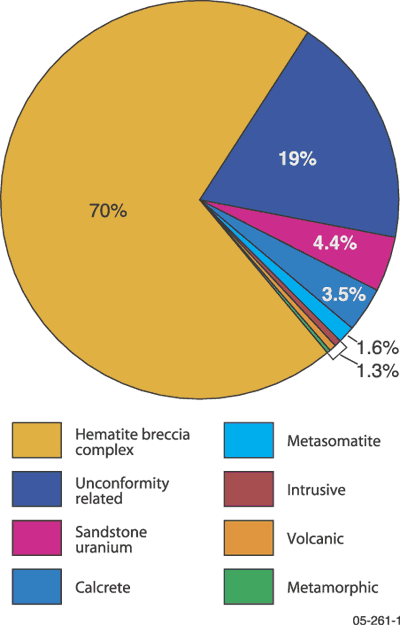

Fig 1. Distribution of Australia's initial in-ground uranium resources.

Uranium mining in Australia began in 1954 at Rum Jungle in the Northern Territory and Radium Hill in South Australia. The first mining of uranium for electricity generation in nuclear reactors began in 1976, at Mary Kathleen in Queensland.

Australia is now the world's second largest producer. In 2004, Canada accounted for 29% of world production, followed by Australia with approximately 22%. Australia's output came from three mines: Ranger, which produced 5138 tonnes of U3O8 (11% of world production), Olympic Dam (4370 t, 9%) and Beverley (1084 t, 2%).

Exports have increased steadily to a record level of 9648 tonnes of U3O8 in 2004, valued at A$411 million.

Australia's uranium sector is based on world-leading resources and high and increasing annual output. Our resources are generally amenable to low-cost production with minimal long-term environmental and social impacts.

Around 85 known uranium deposits, varying in size from small to very large, are scattered across the Australian continent (McKay & Miezitis 2001). After five decades of uranium mining, Australia still has the world's largest uranium resources recoverable at low-cost (less than US$40/kg U, or US$15/lb U3O8). In April 2005, these remaining low-cost resources amounted to 826 650 t U3O8 (= 701 000 t U), or roughly 40% of world resources in this category. Australia's total remaining identified resources in all cost categories amount to 1 347 900 t U3O8.

Figure 1. Distribution of Australia's initial in-ground uranium resources (t U3O8), by type of deposit. (Source of data: OZMIN 2005). (Larger image [GIF 244.1Kb])

Australia's initial in-ground resources of uranium (total resources before mining, without taking account of extraction and processing losses) amount to 2.4 million t U3O8. The distribution of initial in-ground uranium resources among the main types of deposits is summarised in Figure 1.

Types of uranium deposits

Approximately 89% of Australia's initial in-ground resources occur in two main types of deposits:

Hematite breccia complex deposits – approximately 70% of resources occur in Proterozoic hematite granitic breccias at Olympic Dam in South Australia, the world's largest uranium deposit. Broadly similar hematite breccia mineralisation is being evaluated elsewhere in the same geological province at Prominent Hill (very low uranium grade) and at Mt Gee in the Mount Painter Inlier of the Curnamona Province. These are examples of 'iron oxide copper gold deposits' with higher uranium contents than most deposits of this type.

Unconformity-related deposits – about 19% of resources are associated with Proterozoic unconformities, mainly in the Alligator Rivers field in the Northern Territory (Ranger, Jabiluka, Koongarra).

Other significant resources occur in:

Sandstone uranium deposits – about 4.4% of resources, mainly in the Frome Embayment field, South Australia (Beverley, Honeymoon) and the Westmoreland area, Queensland.

Surficial (calcrete) deposits – about 3.5% of Australia's uranium resources, mostly in the Yeelirrie deposit in Western Australia.

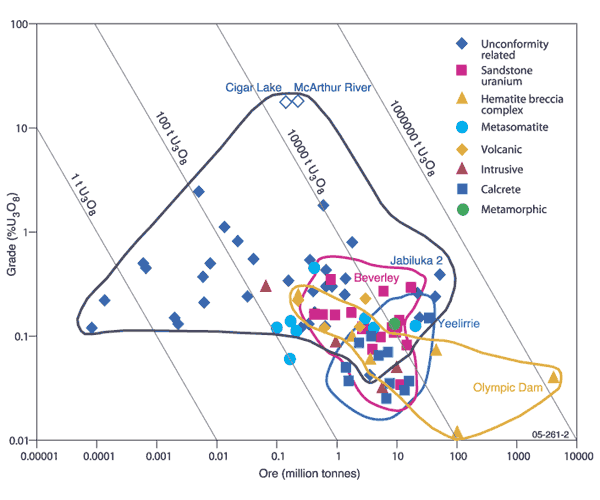

Fig 2. Logarithmic plot of U308 grade (weight %) versus initial mineral resources (Mt) for Australian uranium deposits.

The remaining resources are mainly in metosomatite and volcanic (caldera-related) types of deposits.

Initial in-ground tonnage and grade relationships for Australian deposits are presented in Figure 2, based on Geoscience Australia's OZMIN 2005 database. This shows that:

Figure 2. Logarithmic plot of U3O8 grade (weight %) versus initial mineral resources (Mt) for Australian uranium deposits. Two major unconformity-related uranium deposits in Canada are also plotted (as open symbols). The diagonal lines show tonnes of contained U 3O8. (Larger image [GIF 293.0Kb])

Exploration – past, present and future

As market prices for uranium fell from 1980 onwards, uranium exploration activity declined in Australia and overseas. By 2003, only five companies were actively exploring for uranium in Australia, and the 17 active projects were confined to areas adjacent to known deposits, mainly western Arnhem Land (NT), Frome Embayment and Gawler Craton-Stuart Shelf (SA).

Over the past two years, spot market uranium prices have trebled from around US$10/lb U3O8 in early 2003 to US$33/lb U3O8 in late 2005. Responding to these price rises, uranium exploration expenditure in Australia doubled from $7 million in 2003 to $14 million in 2004. Exploration has continued to increase dramatically during 2005, with about 70 companies exploring for uranium in more than 280 projects, but the current level of expenditure is a small fraction of peak levels of more than $105 million (constant 2003 dollars) reached in 1980. The increase in expenditure that culminated in the 1980 peak was in large part due to the oil shocks of 1973 and 1979, strongly resembling the current situation of high crude oil prices and rising uranium exploration expenditure.

Early uranium discoveries relied extensively on airborne radiometric surveys. The 1960s and early 1970s saw extensive testing of surficial radiometric anomalies. This progressed to more sophisticated approaches, often based on conceptual geological modelling, which led to major discoveries at Jabiluka and Olympic Dam. In more recent exploration, airborne electromagnetic surveys have been used to locate palaeochannels in the vicinity of the Beverley and Honeymoon sandstone uranium deposits in South Australia, and to locate potentially mineralised graphitic rocks in the search for unconformity-style deposits.

Given the paucity of modern exploration, there is significant potential for additional uranium deposits to be found in Australia, including:

Despite the fact that there has only been one notable uranium discovery since 1980 – the unconformity-related Kintyre deposit in 1985 – Australia's low-cost resources have continued to increase through the delineation of additional resources at known deposits, particularly Olympic Dam.

Fig 3. Australian uranium deposits in relation to occurrences of felsic igneous rocks.

Why so rich in uranium?

Spatial and temporal relationships between uranium deposits and unmineralised uranium-enriched rocks from across the continent have been studied in an attempt to explain why Australia has such a high proportion of the world's known uranium resources. This study was based on Geoscience Australia's extensive OZCHEM database.

Of approximately 22 000 rocks in the OZCHEM database analysed for uranium, over 2700 have 10 ppm U or more (at least four times crustal average and more than twice the average for felsic igneous rocks). These uranium-enriched samples are mainly granitic and felsic volcanic rocks, but include a small proportion of associated gneisses and sedimentary samples. Their distribution is indicated in Figure 3. It is a significant observation that all known uranium deposits exhibit clear spatial relationships with uranium-enriched bedrocks. This observation holds true at regional to local scales.

Figure 3. Australian uranium deposits in relation to occurrences of felsic igneous rocks known to have at least 10 ppm uranium. (Larger image [GIF 296.5Kb])

Figure 4 shows the ages of uranium mineralisation in relation to the ages of the uranium-enriched granitoid intrusives and associated felsic volcanics, which were clearly emplaced during major magmatic events during:

Of these intervals, the Proterozoic produced the greatest volumes of uraniferous igneous rocks. These are widespread in South Australia, the Northern Territory and parts of Western Australia and Queensland in regions of high geothermal gradients (Howard & Sass 1964, Etheridge et al 1987). The uranium-enriched felsic igneous rocks are mainly highly fractionated and/or have alkaline affinities. Most felsic igneous rocks contain uranium in accessory minerals such as zircon and monazite, but the uranium-enriched examples appear to be characterised by significant proportions of uraninite, which is relatively readily leached under low-temperature oxidising conditions.

These observations support the conclusion that the large number of uranium deposits and prospects across Australia reflects the extensive emplacement of uranium-enriched felsic rocks in three main periods of igneous activity. While some uranium deposits appear to have formed during these widespread thermal events, most formed from uranium-enriched source rocks by subsequent low-temperature processes.

In the case of Olympic Dam, mineralisation is of similar age to felsic igneous activity. Together with the close spatial association, this supports the view that the uranium was concentrated during hydrothermal activity resulting from this igneous-thermal event (Oreskes & Einaudi 1990, Reeve et al 1990, Reynolds 2000). Olympic Dam's combination of huge tonnage and recoverable uranium grades make it unique among known iron oxide Cu-Au deposits, leading to speculation about its genesis. A number of coincident factors may have been involved:

Some small intrusive and volcanic-style uranium deposits also have temporal association with felsic host rocks, including the intrusive-style Crocker Well deposit in Mesoproterozoic granitoids in South Australia and the Ben Lomond volcanic-style deposit in Carboniferous rhyolitic tuffs in northeastern Queensland (McKay & Miezitis 2001).

More generally, the uranium mineralisation is considerably younger than the spatially related igneous rocks. This is the case for the calcrete, sandstone and unconformity-related deposits, which appear to have formed as a result of uranium mobilisation from older uranium-enriched source rocks under low-temperature oxidising conditions, and precipitation by redox reactions. The high-grade deposits are likely to reflect relatively more efficient oxidation-reduction systems.

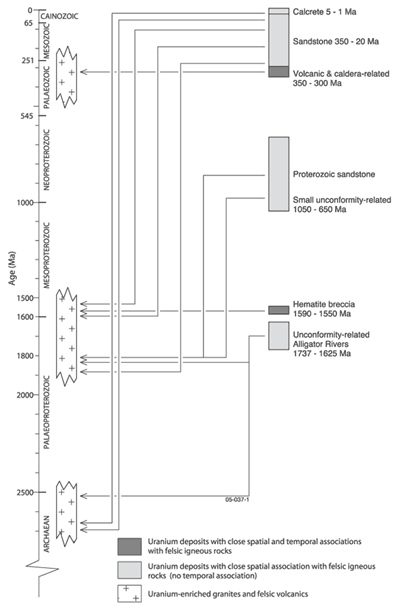

Fig 4. Ages of uranium deposits and uranium-enriched felsic igneous rocks.

In particular:

Figure 4. Ages of uranium deposits and uranium-enriched felsic igneous rocks. Lines link each deposit type to the age of its probable source rocks. (Larger image [GIF 238.3Kb])

It is interesting that no significant uraniferous deposits have been found in Late Archaean-Palaeoproterozoic conglomerates in Australia, which do not have the high proportions of quartz pebbles that are characteristic of the major gold-uranium bearing conglomerates of the Witwatersrand in South Africa, and to a lesser extent the uranium-bearing Elliott Lake conglomerates at Canada. This probably reflects the absence of major and relatively rapid uplift and erosion of fertile Archaean crustal blocks in Australia.

For more information phone Ian Lambert on +61 2 6249 9556 (email ian.lambert@ga.gov.au)

References

  1. Ahmad M & Wygralak AS. 1990. Murphy Inlier and environs – regional geology and mineralisation. In: Hughes FE (ed), Geology of the Mineral Deposits of Australia and Papua New Guinea. The Australasian Institute of Mining and Metallurgy; 819-826.
  2. Champion DC & Sheraton JW. 1997. Geochemistry and Nd isotope systematics of Archaean granites of the Eastern Goldfields, Yilgarn Craton, Australia: implications for crustal growth processes. Precambrian Research 83(1):109-132.
  3. Cuney ML. 2005. World-class unconformity-related uranium deposits: key factors for their genesis. In: Mao Jingwen & Bierlein FP (eds), Mineral Deposit Research: Meeting the Global Challenge. Proceedings of the Eighth Biennial SGA Meeting 2005, Beijing, August 18-21.
  4. Curtis JL, Brunt DA & Binks PJ. 1990. Tertiary palaeochannel uranium deposits of South Australia. In: Hughes FE (ed), Geology of the Mineral Deposits of Australia and Papua New Guinea. The Australasian Institute of Mining and Metallurgy; 1631-1636.
  5. Etheridge MA, Rutland RW & Wyborn LA. 1987. Orogenesis and tectonic process in the Early to Middle Proterozoic of northern Australia. In: Kroner A (ed), Proterozoic Lithospheric Evolution. American Geophysical Union and Geological Society of America, Geodynamics Series 17:131-147.
  6. Fulwood KE & Barwick RE. 1990. Mulga Rock uranium deposits, Officer Basin. In: Hughes FE (ed), Geology of the Mineral Deposits of Australia and Papua New Guinea. The Australasian Institute of Mining and Metallurgy; 1621-1623.
  7. Howard LE & Sass JH. 1964. Terrestrial heat flow in Australia. Journal of Geophysical Research 69:1617-1626.
  8. McKay AD & Miezitis Y. 2001. Australia's uranium resources, geology and development of deposits. AGSO-Geoscience Australia, Mineral Resources Report 1.
  9. Oreskes N & Einaudi M T. 1990. Origin of rare earth element-enriched hematite breccias at the Olympic Dam Cu-U-Au-Ag deposit, Roxby Downs, South Australia. Economic Geology 85:1-28.
  10. Reeve JS, Cross KC, Smith RN & Oreskes N. 1990. Olympic Dam copper-uranium-gold deposit. In: Hughes FE (ed), Geology of the Mineral Deposits of Australia and Papua New Guinea. The Australasian Institute of Mining and Metallurgy, 1009-1035.
  11. Reynolds LJ. 2000. Geology of the Olympic Dam Cu-U-Au aw Materials for the Nuclear Fuel Cycle, Vienna, 20-24
