AusGeo News  June 2009  Issue No. 94

Fighting fire with satellite datasets

David Hudson and Norman Mueller

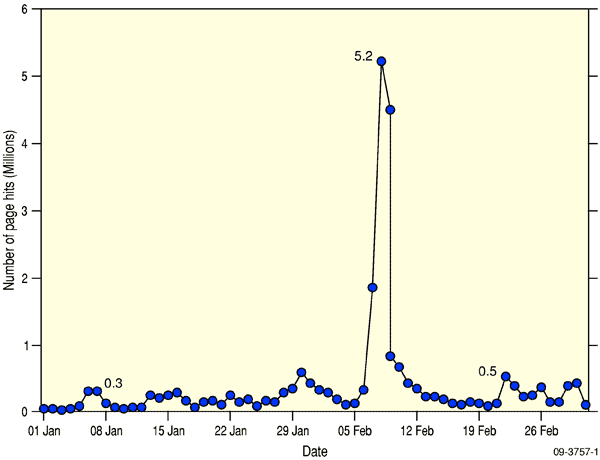

Fig 1. Levels of usage of the Sentinel website during January and February 2009.

Satellite imagery aids emergency relief

On the weekend of 7 February 2009 a series of large bushfires across Victoria resulted in Australia's most serious bushfire event which claimed 173 lives.

During the emergency, Geoscience Australia provided satellite-derived information to support the emergency response and recovery efforts. This support was through the Sentinel system (an online 'hotspot' detection system) and provision of satellite imagery and maps showing areas affected by bushfires.

Figure 1. Levels of usage of the Sentinel website during January and February 2009. (Larger image [GIF 269.5kb])

Sentinel (online hotspot detection system)

The Sentinel online hotspot detection system was initially developed during the bushfires in New South Wales and the Australian Capital Territory in early 2002. Operation of the Sentinel system passed from CSIRO to Geoscience Australia in 2005. Sentinel's contribution to fire regime mapping was highlighted in the Council of Australian Governments' (COAG) National Inquiry on Bushfire Management, Prevention and Mitigation (COAG 2004, Recommendation 5.2).

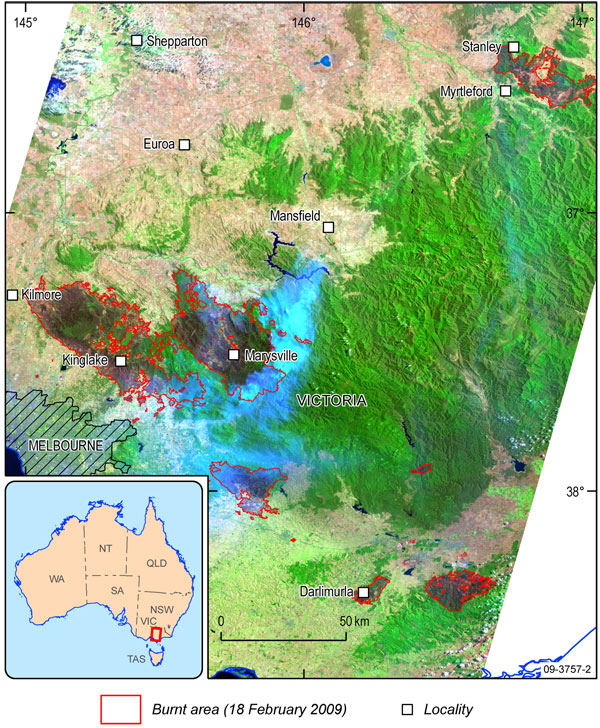

Fig 2a. Cloud-free image highlighting burnt areas (in red) and showing smoke rising from the Kinglake and Marysville fires.

Sentinel uses United States satellites with thermal infra-red sensors to detect hotspots which indicate bushfires. The satellites pass over Australia each morning and afternoon, observing the land surface and beaming that information to Geoscience Australia's ground station at Alice Springs. The information is analysed automatically by a computer to detect hotspots. Within an hour of the satellite overpass the hotspots appear on the internet site.

Record numbers of people accessed the Sentinel website during Victoria's catastrophic fires in February. Over 5.2 million hits were recorded on Sunday 8 February, and Geoscience Australia staff struggled to keep the system running. Figure 1 shows the levels of use experienced during this period. The website's usage levels returned to normal by Wednesday 11 February, and full web mapping functionality was restored to the public later that week.

Figure 2a. Cloud-free image highlighting burnt areas (in red) and showing smoke rising from the Kinglake and Marysville fires. ( Larger image [JPG 1.25mb])

Satellite imagery and maps showing areas affected by bushfires

Between 7 February and 26 February, Geoscience Australia acquired 103 satellite scenes over the fire affected areas. Satellites operated by the United States, Korea and Japan all provided data (see table 1). China also provided satellite information products during the fires. Geoscience Australia's remote sensing scientists were able to analyse these images to produce some of the first maps showing the actual areas burnt. These maps and images were distributed to emergency managers, researchers and the media.

Table 1. Detailed breakdown of each of the acquired datasets and their source.

Satellite, Sensor Type Scenes acquired Resolution (m) Acquired by
ALOS, AVNIR-2 Optical 18 10 GA
ALOS, PALSAR RADAR 16 10-30 Sentinel Asia
Terra, MODIS Optical/thermal 24 250 GA
Aqua, MODIS Optical/thermal 21 250 GA
Landsat 5, TM Optical 11 30 GA
Landsat 7, ETM Optical 10 30 GA
KOMPSAT-2, MS Optical 3 4 KARI*
Total   103

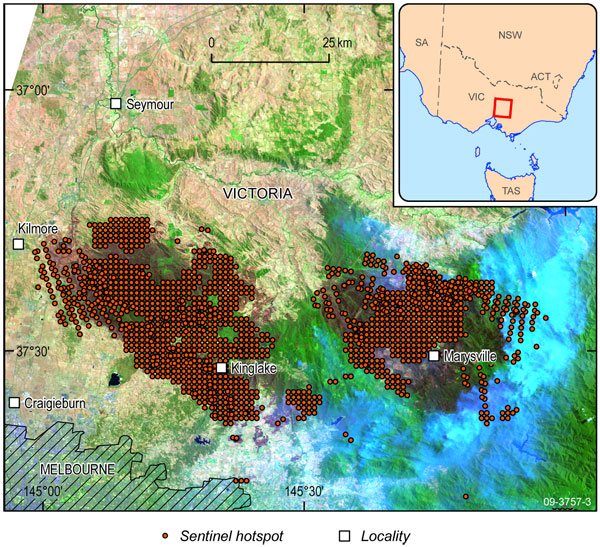

Fig 2b. Hotspot data from the Sentinel system (red square dots) overlaid on a satellite image of the Kinglake and Marysville fires.

Thick smoke and cloud were common during the fires making it very difficult to gather complete satellite images. Although the fires began on 7 February, the first completely cloud-free image was not acquired until ten days later on 17 February by the Landsat-5 satellite. An image of the area of interest, which was cloud free, was highly processed to highlight burnt areas and show fire fronts (figure 2a).

As is common during an emergency, many requests for data of the affected area were received. Geoscience Australia worked with Emergency Management Australia's Incident Management Facility to distribute this data. Satellite imagery, burn extent information and Sentinel hotspot data were requested by power and water utilities, communications companies, insurance providers, state and federal Government agencies involved in disaster mitigation and relief, as well as Australian and overseas research organisations.

Figure 2b. Hotspot data from the Sentinel system (red square dots) overlaid on a satellite image of the Kinglake and Marysville fires. (Larger image [JPG 961.5kb])

For more information phone David Hudson on +61 2 6249 9853 (email david.hudson@ga.gov.au)
