Updated: 28 June 2005

Davis GPS Station, Antarctica

Australian Regional GPS Network

Station Identification

Station Name	DAVIS	Station Number	AUS099
4 Character ID	DAV1	DOMES Number	66010M001

[back to top]

Station Coordinates

Datum	ITRF96 - Epoch of 1998.0
Latitude	S68° 34' 38".36161	Longitude	E077° 58' 21".40827
Observed Ellipsoid Height	44.393 metres
X	486854.559	Y	2285099.294
Z	-5914955.674
Grid System	UTM - GRS 80	Grid Zone	43
Easting	0621127.013	Northing	2389841.209
Geoid Separation (EGM96)	18.190 metres	MSL Height	27.874 metres

[back to top]

Station Equipment

Receiver	(AOA ICS-4000Z ACT) ASHTECH Z-XII3. SNR-12 RM TurboRogue®
Antenna	AOA Dorne Margolin T

[back to top]

Site Information

DAV1 Station mark [gif_32k] is the centre of a 5/8 inch threaded spigot centred on a stainless steel plate. The plate is secured into rock by a 25mm diameter central steel stem and three bolts fixed to the outer edge of the plate. The station is located on high ground south of the Davis Antarctic Research Station.

[back to top]

Station Information

Data Quality & Availability
Station Photographs

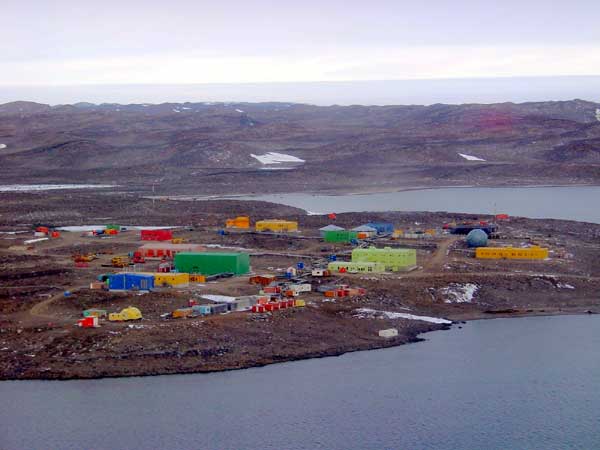

Aerial photograph of Davis Station [jpg_28k]
Station Log
