Updated: 28 June 2005

Jabiru GPS Station, Northern Territory

Australian Regional GPS Network

Station Identification

Station Name	JABIRU	Station Number	AU043
4 Character ID	JAB1	DOMES Number	50136M001

[back to top]

Station Coordinates

Datum	GDA 94 (ITRF92 - Epoch of 1994.0)
Latitude	S12° 39' 31".875550	Longitude	E132° 53' 38".02005
Observed Ellipsoid Height	82.114
X	-4236442.675	Y	4559929.626
Z	-1388624.813
Grid System	UTM - MGA	Grid Zone	53
Easting	0271256.241	Northing	8599668.181
Geoid Separation (AUSGeoid98)	55.051 metres	AHD Height	26.667 metres

[back to top]

Station Equipment

Receiver	Ashtech Z12
Antenna	AOA Dorne Margolin T

[back to top]

Site Information

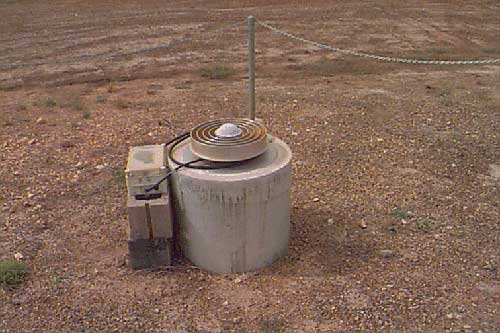

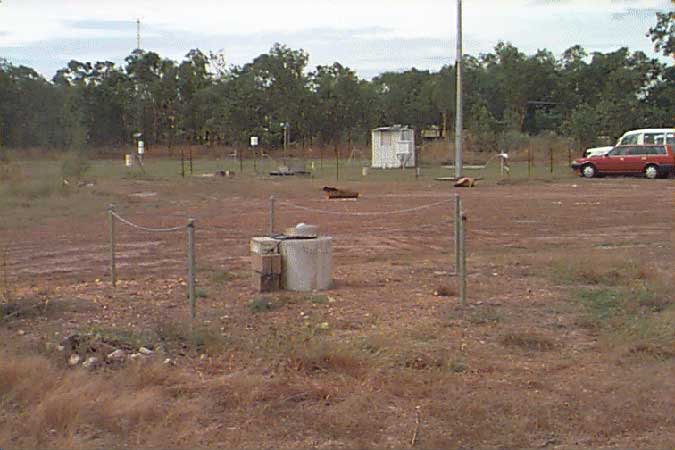

JAB1 Station mark [jpg_31k] is a 0.7 metre diameter concrete pillar, 0.5 metres high. Set in the top is a stainless steel plate 460mm diameter and 12mm thick. A 5/8 inch threaded spigot is located in the centre. The station is located on the perimeter of the airstrip at Jabiru.

[back to top]

Station Information

[back to top]

For more information contact: geodesy@ga.gov.au
