Uncovering Proterozoic mineral wealth

Geoff Fraser, Narelle Neumann and David Huston

Research points to mineral deposit prospects

A project synthesising geochronology, geodynamic analysis and tectonic modelling will give the mining industry hints on where to prospect for big, accessible economic mineral reserves.

Much of Australia's mineral wealth comes from deposits from the Proterozoic Eon, 2500 to 542 million years ago (Ma). About 90% of our uranium and lead, 85% of our zinc, and 70% of our copper reserves were deposited in the Proterozoic.

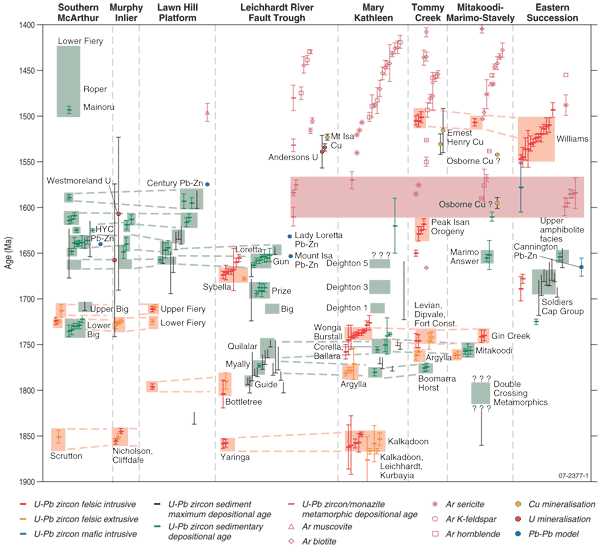

Fig 1. Time-space plot for the Mount Isa Inlier and southern McArthur Basin showing the abundance of geochronological data underpinning our understanding of the stratigraphic and magmatic evolution of the eastern margin of the North Australian Craton.

Most of our world-class deposits, such as Broken Hill, Hilton, Mt Isa, McArthur River HYC, Century and Olympic Dam, formed between 1870 Ma and 1550 Ma, a period spanning about a sixth of the Proterozoic. Apart from Olympic Dam, all these deposits were discovered at or near the surface. Between 30% and 50% of the continent contains rocks from this slice of the Proterozoic, but only a few per cent, at best, crops out. If about 5% outcrop has yielded five giant mineral deposits, 95 giant deposits could remain undiscovered in Proterozoic Australia. In most cases, the cover is only in the order of hundreds of metres at most. The challenge is to predict, at successively higher resolution, where undiscovered mineral wealth lies beneath this thin veneer.

Continental scale

Over the past year, the Proterozoic Synthesis of Australia project has worked to tackle the problem on the continental scale.

We used an understanding of geodynamic processes to predict the location of potential deposits. For example, base metal deposits often occur in developing sedimentary basins, while porphyry copper deposits are often in magmatic arc settings. The project assessed the Proterozoic geodynamic evolution of Australia, and used this to predict regions of mineral prospectivity at the continental scale.

Figure 1. Time–space plot for the Mount Isa Inlier and southern McArthur Basin showing the abundance of geochronological data underpinning our understanding of the stratigraphic and magmatic evolution of the eastern margin of the North Australian Craton. All available radiometric ages and their uncertainties are plotted and coded by colour and symbol according to the geochronological method and geological interpretation. Coloured overlays highlight periods of geological activity, with green indicating sedimentation, red, magmatism and pink, metamorphism. (Larger image [GIF 321.1kb])

An important component of the project was to compile the evidence underpinning geodynamic interpretations. For the major Proterozoic regions, we compiled and assessed all the available geochronology, and plotted it in a consistent format and time scale to produce a series of time–space graphs (see figure 1 for an example). In contrast to many previously published time–space diagrams, these plots allow easy visual assessment of the quantity and consistency of the available data. The plots are available as thematic layers showing geochronological constraints on sedimentary deposition, magmatic activity, metamorphism and deformation, and mineralising events, along with explanatory notes, in Neumann and Fraser (2007).

Geochronological constraints are critical in comparing the geological history of different crustal fragments in the Australian Proterozoic puzzle. Our compilation highlights the wide variation in the quantity and quality of geochronological constraints for different Australian Proterozoic inliers, and for different aspects of their evolution. For example, the abundance of data for the Mt Isa region and Curnamona Province allows a relatively detailed stratigraphic framework to be erected, in contrast to the relatively few stratigraphic age constraints available for the Gawler Craton. As well as indicating levels of confidence that can be attached to age-based geological correlations, this information can also be used to guide future dating work, both within Geoscience Australia and by external researchers.

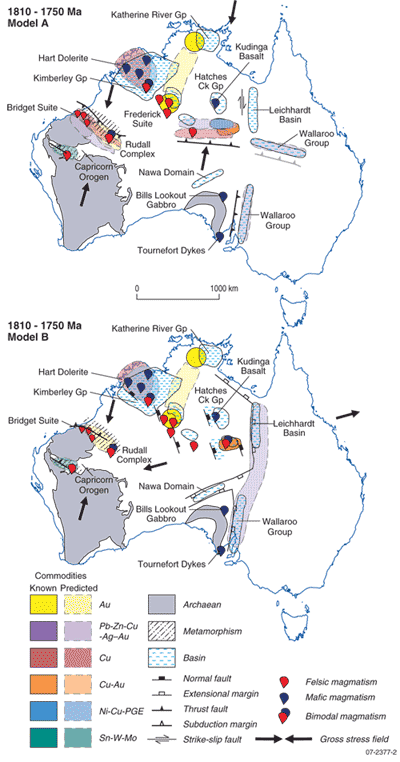

Fig 2. Alternative geodynamic models for Proterozoic Australia for 1810 to 1750 Ma, with known and predicted mineral commodities shown as coloured overlays.

Reviews of earlier models

As part of the project, we held a series of workshops in collaboration with colleagues from the state and Northern Territory geological surveys to review and summarise the geological evolution of particular Australian Proterozoic regions.

We also reviewed previously published tectonic models for Proterozoic Australia and the evidence on which they were based. The review traced the development of tectonic interpretations over the past 20 years, ranging from the 'ensialic' model of Etheridge et al (1987) invoking largely vertical addition to the crust, to a series of recently published models dominated by plate tectonic-style, horizontal accretionary tectonics.

There is an apparent inconsistency between recently published models that infer a long-lived, convergent, accretionary margin along the southern edge of the North Australian Craton (for example, Giles et al 2004, Betts and Giles 2006, Wade et al 2006) and others that infer a long-lived east-facing extensional margin along the eastern edges of the North Australian and South Australian cratons (Gibson et al, in press). The contradictions arise partly from workers having experience in different parts of Proterozoic Australia and partly from contrasting tectonic interpretations of the same geological evidence.

Implications for explorers

Since the tectonics is open to interpretations with differing implications for minerals systems, we have not presented a single model for the tectonic evolution of the Australian Proterozoic. Instead, we present two contrasting end-member models for five time intervals between 1870 and 1550 Ma. We present the models as a series of diagrams showing major geological features and inferred geodynamic setting, with coloured overlays depicting predicted mineral commodities based on associations between mineral systems and geodynamic processes.

Figure 2. Alternative geodynamic models for Proterozoic Australia for 1810 Ma to 1750 Ma, with known and predicted mineral commodities shown as coloured overlays. Note the contrasting predictions of mineral prospectivity in the two models along the eastern margin of both the North Australian and South Australian cratons, along the southern margin of the North Australian Craton, and along the margin between the North Australian and West Australian cratons. (Larger image [GIF 297.7kb])

Prediction of mineral prospectivity conducted at the continental scale provides a first-order guide to area selection for mineral exploration. Examples of these diagrams are shown in figures 2a and 2b. They illustrate how different end-member geodynamic models lead to significantly different predictions of mineral prospectivity in particular regions. See Fraser et al (2007) for the full series of the diagrams and explanatory notes, along with a review of published tectonic models and known metallogenic events for Proterozoic Australia.

For more information phone Geoff Fraser on +61 2 6249 9063 (email geoff.fraser@ga.gov.au)

Related websites/articles

Proterozoic Synthesis Project

Fraser G et al. 2007. Geodynamic and metallogenic evolution of Proterozoic Australia from 1870–1550 Ma: a discussion. Geoscience Australia Record 2007/16

Neumann N & Fraser G (eds). 2007. Geochronological synthesis and time–space plots for Proterozoic Australia. Geoscience Australia Record 2007/06

References

  1. Betts PG & Giles D. 2006. The 1800–1100 Ma tectonic evolution of Australia. Precambrian Research 144:92–125.
  2. Etheridge MA, Rutland RWR & Wyborn LAI. 1987. Orogenesis and tectonic process in the early to middle Proterozoic of northern Australia. In: Proterozoic Lithosphere Evolution, Geodynamics Series, 17:131–147.
  3. Fraser GL, Huston DL, Gibson GM, Neumann NL, Maidment D, Kositcin N, Skirrow RG, Jaireth S, Lyons P, Carson C, Cutten H & Lambeck A. 2007. Geodynamic and metallogenic evolution of Proterozoic Australia from 1870 to 1550 Ma: a discussion. Geoscience Australia Record 2007/16.
  4. Gibson GM, Rubenach MJ, Neumann NL, Southgate PN & Hutton LJ. In press. Syn- and post-extensional tectonic activity in the Palaeoproterozoic sequences of Broken Hill and Mount Isa and its bearing on reconstructions of Rodinia. Precambrian Research.
  5. Giles D, Betts PG & Lister GS. 2004. 1.8 to 1.5 Ga links between the North and South Australian cratons and the Early-Middle Proterozoic configuration of Australia. Tectonophysics 380:27–41.
  6. Neumann N & Fraser G (eds). 2007. Geochronological synthesis and time–space plots for Proterozoic Australia. Geoscience Australia Record 2007/06.
  7. Wade BP, Barovich KM, Hand M, Scrimgeour IR & Close DF. 2006. Evidence for Early Mesoproterozoic arc magmatism in the Musgrave Block, Central Australia: Implications for Proterozoic crustal growth and tectonic reconstructions of Australia. The Journal of Geology 114:43–63.
