2.3.5 Dams

2.3.5.3 Example 3

Location of Example: 149°6'00" East, 28°46'14" South
Distinctive Characteristics:
  • Dams can be differentiated from vegetation on thematic imagery by their blue signature compared with the red signature of the vegetation.
  • Dams can also be identified by the surrounding earth which was disturbed or displaced during the construction of the Dam. This can aid in distinguishing dry dams from depressions.

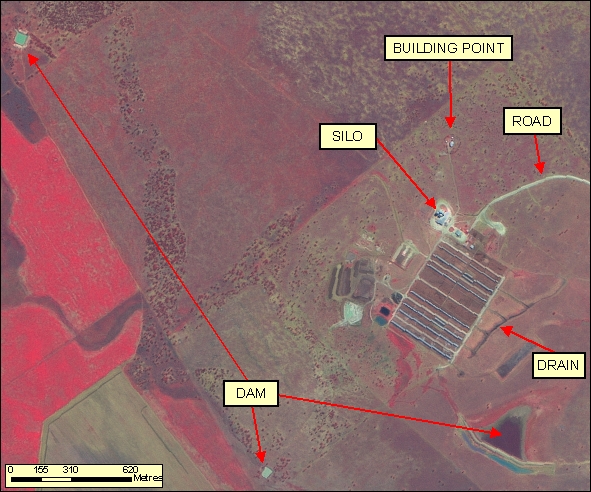

  • Spectral response may also indicate the presence of water even in a dry dam. In Figure 2.3.5.3b the SPOT imagery indicates a presence of the water with the light blue signature.
Regional Considerations:
Figure: 2.3.5.3 Representation of Dams

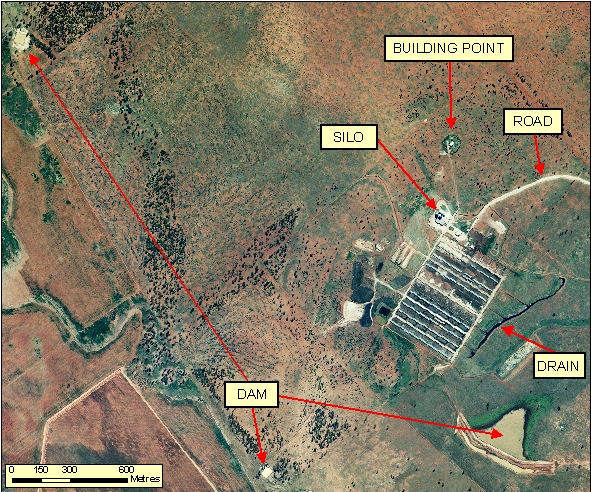

Figure: 2.3.5.2a Orthophotography 60cm RGB=123 Figure: 2.3.5.2b SPOT 2.5m RGB=123
