2.2.3 Landing Grounds

2.2.3.1 Example 1

Location of Example: 152°32'40" East, 25°14'17" South
Distinctive Characteristics:
  • Landing Grounds appear as relatively long, straight, paved or graded features.
  • They are not part of the road network and generally have only a few access points.
  • They are often noticeably wider than surrounding roads.
  • In some cases, especially commercial landing grounds, they have a smaller taxi strip running parallel.
  • In Figure: 2.2.3.1b notice the dark blue grey signature of the landing ground compared with the surrounding area.
  • A buffer of Vegetation is generally cleared along the edges of the Landing Ground to minimise risk to aeroplane safety.
Regional Considerations:
  • In rural and remote areas Landing Grounds can be more isolated from surrounding infrastructure and simplified to a single strip. Access points may not be visible on imagery.
  • Whereas in more populated areas Landing Grounds can be of a more complex nature often with more than one landing strip (i.e. cross strip) and maybe more difficult to differentiate from licensed facilities without Reference Material.
Figure: 2.2.3.1 Representation of a Landing Ground.

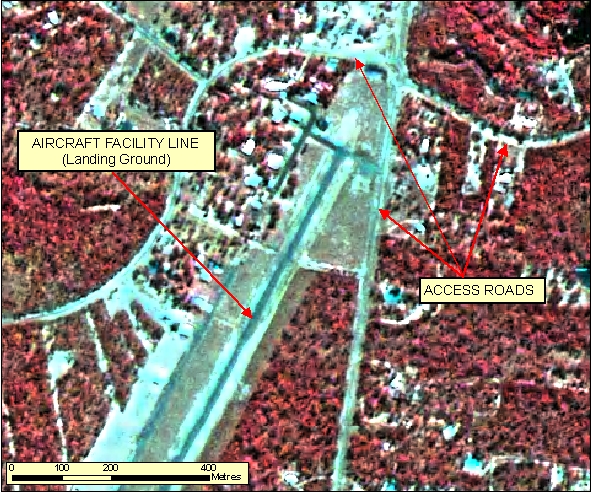

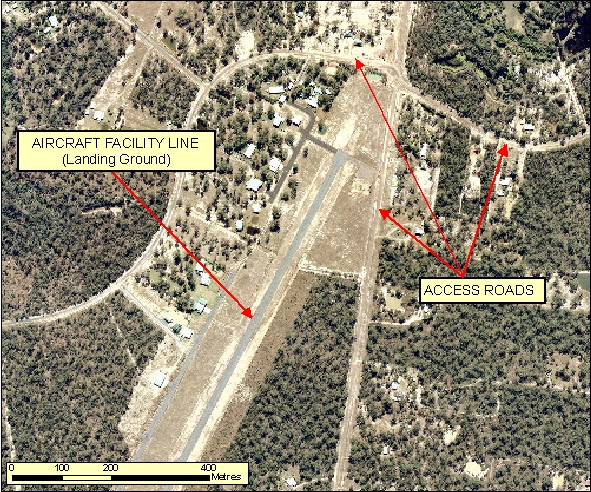

Figure: 2.2.3.1a Orthophotography 60cm RGB=123 Figure: 2.2.3.1b SPOT 2.5m RGB=123
