2.2.6 Road Existence

2.2.6.1 Example 1

Location of Example: 148°29'56" East, 34°07'44" South
Distinctive Characteristics:
  • Figure 2.2.6.1 is an example of a road that no longer exists as there is no evidence of change on the surface of the ground where the road was once present.
  • If a section of a road is still evident then it is likely that a road still exists, whereas, if there is no evidence at all of a road being present on imagery then it can be assumed to no longer exist.
  • Additional evidence that the road does no longer exist maybe if the old road does not appear to go to any significant terminating feature, such as a building, waterbody or other infrastructure.
Regional Considerations:
Figure: 2.2.6.1 Representation of a Road which no longer exists.

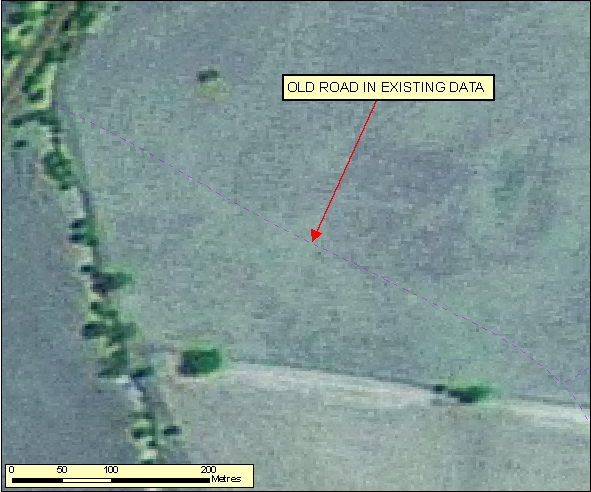

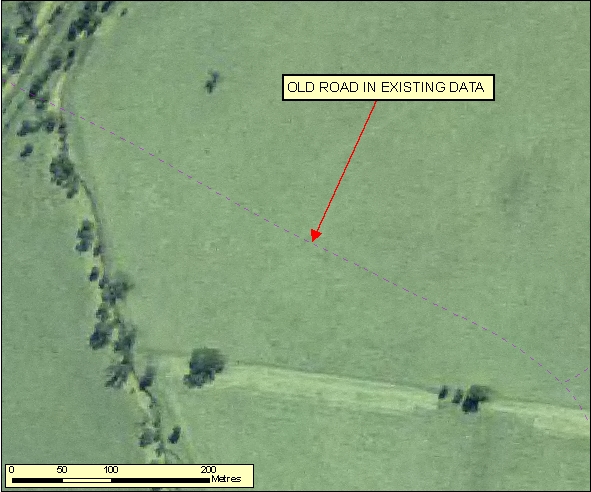

Figure: 2.2.6.1a Orthophotography 1m RGB=123 Figure: 2.2.6.1b SPOT 2.5m RGB=321
