AusGeo News  June 2005  Issue no. 78

Riverina Geochemical Survey a national first

By Patrice de Caritat, Megan Lech, Subhash Jaireth, John Pyke and Ian Lambert

Baseline geochemical surveys have been conducted for most developed countries, but not yet for Australia. In a country as large and diverse as Australia, an initial step in the development of a national low-density geochemical map needs to be the pilot testing of geochemical survey methodologies in representative regions displaying contrasting topographic, drainage and climatic conditions.

Undertaken collaboratively by the Cooperative Research Centre for Landscape Environments and Mineral Exploration (CRC LEME) and Geoscience Australia, the first such pilot project has been completed in the Riverina, a prime agricultural Riverina region in southern New South Wales and northern Victoria. A second pilot study has commenced in the remote, flat, dry Gawler Craton of South Australia, where there is very limited stream drainage.

The Riverina survey has delivered cost-effective, internally consistent and quality-controlled data on the inorganic chemical composition of surface and subsurface sediments of large catchments in the region

The resulting geochemical maps show concentrations of 62 elements. Independent data on the distribution of radioactive elements potassium, thorium and uranium corroborates the findings, clearly indicating that the methodology works.

This multi-element geochemical data layer will be made available to decision makers, catchment management authorities, farmers, mineral explorers and other stakeholders to guide activities and decisions in a multitude of land-use and resource management applications.

Among a range of findings, the survey identified:

The Riverina survey was designed to prove the value of geochemical mapping and to fine-tune sampling and analytical protocols for a well drained region with modest relief and temperate climate.

Why geochemical mapping?

Australia’s regolith—the blanket of soils, sediments and weathered rocks covering fresh bedrock—is the natural resource upon which our multimillion dollar agricultural industry is based. It also hosts much of our precious groundwater resources and contains or covers ore bodies vital for our economic development.

Baseline geochemical surveys provide invaluable information about the natural concentrations of chemical elements in this substrate on which we live, grow crops and raise livestock, and from which we extract water, raw materials and mineral wealth.

Overseas data collated from multimedia and multi-element geochemical surveys carried out over large areas indicates that natural concentrations of chemical elements in water, sediment, soil and plants vary spatially by up to several orders of magnitude due to geological, climatic, biological and other factors (Reimann & Caritat 1998).

It is important to know the natural concentrations and distributions of elements in the near-surface environment so that:

Low-density geochemical mapping

Based on experience elsewhere (e.g. Reimann et al 1998), a multimedia sampling strategy cost-effectively yields information about sources, sinks and pathways of chemical elements in the near-surface environment.

The main sampling medium used for the Riverina survey was overbank (levee or floodplain) sediments near outlets from large drainage basins or catchments. As this material accumulates during active widespread erosion related to flooding episodes, it is judged to best represent the average lithological input of whole catchments (Ottesen et al 1989). Deposited outside main drainage channels onto floodplains, this fine-grained sediment has an enhanced propensity to host adsorbed and absorbed chemical species.

We believe that this sampling medium is ideal for Australia’s low-relief, regolith-dominated landscapes in tropical to arid climates. It had not previously been used here for low-density geochemical mapping and needed to be tested under local conditions. Other sampling media trialled in the Riverina pilot project were plant leaves and groundwater, which will be discussed in forthcoming reports.

The concept of low-density sampling for geochemical mapping has been around for a long time (Nichol et al 1966, Garrett & Nichol 1967, Reedman & Gould 1970) and has recently experienced renewed interest in Europe (Reimann et al 1998, 2003), the United States (Gustavsson et al 2001) and China (Li Jiaxi & Wu Gongjian 1999), for instance. Darnley et al (1995) have suggested a framework for global geochemical mapping, and the sampling media selected include overbank sediments. Sampling densities used for geochemical surveys elsewhere range from high (~1 sample/1 km2) (e.g. Austria: Thalmann et al 1989) to ‘ultra low’ (~1 sample/1000 to 10,000 km2) (e.g. Europe: Plant et al 2003, Reimann et al 2003).

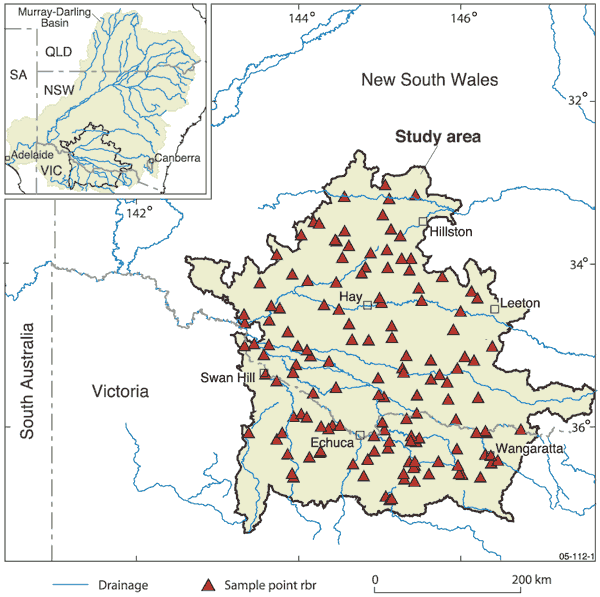

Figure 1. Location of the Riverina study area and sampling sites.

The Riverina region

For the purposes of the pilot project, the Riverina was defined as the 123,000 km2 area encompassing catchments that are wholly or partly contained within the Riverina Bioregion (figure 1; see Lambert et al 1995 for bioregion concept).

The Riverina is part of the Murray–Darling basin, a significant agricultural, social and mineral district in Australia, which:



Figure 1. Location of the Riverina study area and sampling sites. (Larger image [GIF 36Kb])

Sampling and analysis

The Riverina was the focus of a recent airborne geophysical data acquisition initiative led by the New South Wales Department of Primary Industries, which resulted in new digital elevation model, airborne gamma-ray and total magnetic intensity data coverages (NSW DPI 2005).

Theoretical sample sites were located by conducting a hydrological analysis of the digital elevation model to determine the lowest point in large river catchments (see Caritat et al 2004). These sample sites were carefully adjusted in the context of drainage and road/track coverages and field considerations such as land accessibility, landscape position and possible anthropogenic interferences. A total of 142 sample sites were selected near outlets or spill points of large catchments, yielding an average sampling density of one sample per 866 km2.

Two sediment samples were taken at each site:

All samples were subjected to a detailed site description in the field, where measurements of pH, texture and moist and dry Munsell colours were also taken. In the laboratory, pH 1:5 (solid:water), EC 1:5, moisture content and laser particle size distribution were determined. Sediment splits were dried and sieved to <180 mm then analysed by X-ray fluorescence (XRF), inductively coupled plasma mass spectrometry (ICP-MS) and instrumental neutron activation analysis (INAA) (see Caritat et al 2004).

The concentrations of 62 elements were determined, providing data for maps showing the spatial and statistical distributions in the TOP and BOT samples and of the TOP/BOT ratios (report in preparation).

Figure 2. Geochemical map of total thorium compared to airborne gamma-ray distribution

Results and potential applications

Sampling at upper and lower levels at each site allows for a more detailed understanding of the potential sources of chemical elements in the environment. TOP samples are susceptible to the influence of human activity (e.g. fertiliser use), while BOT samples from well below tilling depth reflect more closely natural background levels.

Median concentrations of most elements were higher in BOT samples, reflecting progressive mineral breakdown during weathering and ensuing mobilisation of soluble products. However, median concentrations of silver, lead, antimony, sulfur, yttrium and most rare earth elements were similar at both depths, while median concentrations of bromine, hafnium, manganese, phosphorus, silicon, zirconium and organic matter were higher in TOP samples.

These variations reflect relative concentration of more resistive minerals (quartz, zircon), precipitation of secondary weathering products (manganese oxyhydroxides), greater concentration of organic matter and perhaps fertilisers, and possibly evaporation of irrigation water near the surface.

As a means of independently evaluating the geochemical patterns obtained through this survey, we compared the geochemical map of thorium in TOP samples with airborne gamma-ray spectrometry patterns for the same element (figure 2). The coincidence of patterns is striking and the geochemical maps are faithful to a high degree of detail, clearly indicating that the patterns are real.

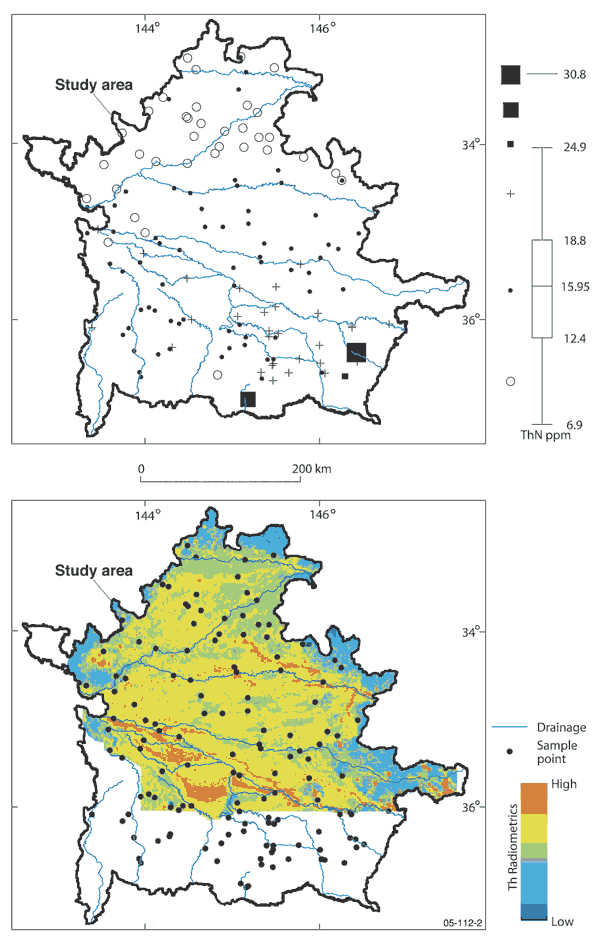

Figure 2. Geochemical map of total thorium (ppm) in TOP Riverina overbank sediment samples (analysed by INAA) (a), compared to airborne gamma-ray distribution of thorium (b).(Larger image[GIF 43Kb])

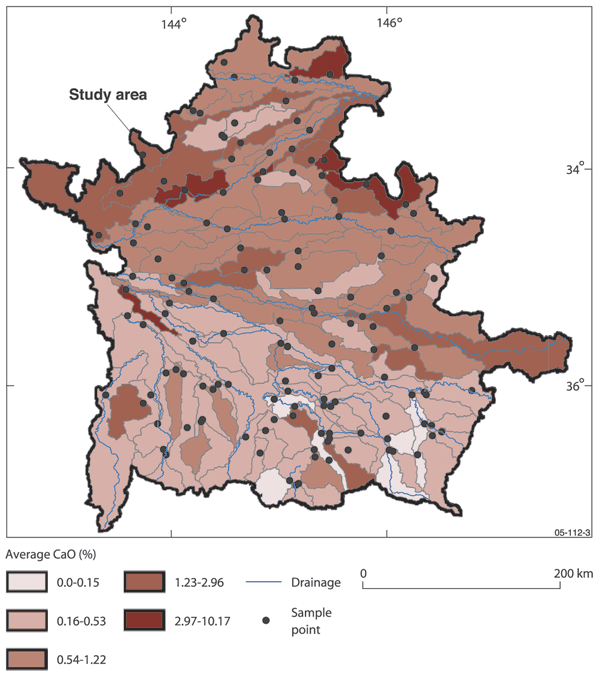

Figure 3. Geochemical map of total calcium (ppm) in BOT Riverina overbank sediment samples

Acidity and salinity

The survey found obvious patterns of calcium and chlorine distribution in overbank sediments which have implications for soil pH and salinity management applications in agricultural soils. Calcium in BOT samples increased from south to north, reflecting the increasing occurrence of carbonate material observed (figure 3). Interestingly, the TOP calcium map shows an east–west ridge of values going through the middle of the study area, with lower values to both the south and the north.



Figure 3. Geochemical map of total calcium (ppm) in BOT Riverina overbank sediment samples (analysed by XRF).( Larger image[GIF 43Kb])

Indicators of gold mineralisation

Arsenic and antimony are well-known pathfinder elements for gold mineralisation. The Victorian goldfields are located immediately to the south of the study area, and the arsenic and antimony distribution maps clearly show a progressive decrease from the southern edge of the area towards the north (figure 4). We interpret this as a representation of mechanical dispersion trains from the source regions to the south and perhaps also concealed sources below shallow basin sediments.

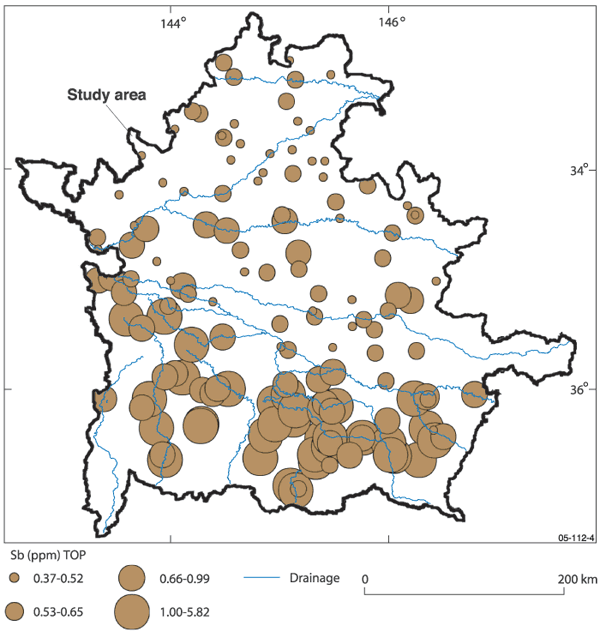

Figure 4. Geochemical map of total antimony (ppm) in TOP Riverina overbank sediment samples

Antimony levels range up to nearly 11 mg/kg, over 20 times the median world soil concentration (Reimann & Caritat 1998). This confirms the anomalous nature of the sediments in the southern part of the study area and highlights the potential for the minerals exploration industry to use such surveys for regional orientation purposes.



Figure 4. Geochemical map of total antimony (ppm) in TOP Riverina overbank sediment samples (analysed by INAA).(Larger image[GIF 49Kb])

Trace element enrichments and deficiencies

Several trace elements were found to be above or below national and international guidelines for maximum allowable concentrations for agricultural soils, soil remediation and biosolids application. Concentrations of arsenic, barium, bromine, cadmium, chromium, copper, iron, gallium, nickel, antimony, uranium and vanadium were locally elevated above these guidelines. Cobalt, copper and molybdenum were found to be potentially deficient in parts of the region.

Concentrations of chromium increase smoothly towards the south (figure 5). Over half of the overbank samples collected contain more than 50 mg/kg Cr, which is the Western Australian ‘ecological investigation limit’ (WA DOE 2003). Five samples (max = 162 mg/kg) have elevated values above 100 mg/kg, which is the maximum allowable soil contaminant concentration for application of biosolids to agricultural land (NSW EPA 1997). Two of these samples were from the southern central portion of the study area and were elevated in both TOP and BOT samples. These catchments drain a ridge of Cambrian mafic volcanics. Another possible source of elevated Cr is the Quaternary tholeiitic basalts located near the edge of the Riverina region. While high chromium levels may have human health implications (Reimann & Caritat 1998, Adriano 2001), even the maximum total value in the Riverina is unlikely to yield excessive available Cr based on the results of a study in Italy, which found that <0.1% of total Cr was bioavailable (Maisto et al 2004).

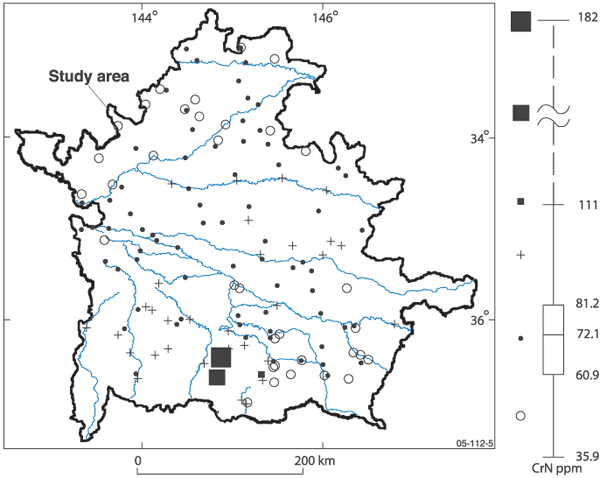

Figure 5. Geochemical map of total chromium (ppm) in BOT Riverina overbank sediment samples



Figure 5. Geochemical map of total chromium (ppm) in BOT Riverina overbank sediment samples (analysed by INAA).( Larger image [GIF 33Kb])



Molybdenum is an essential nutrient to many crops. While the global average concentration of molybdenum in soil ranges from 0.2–5 mg/kg (Adriano 2001), the median value in the study area was 0.8 mg/kg. Levels at or below 0.5 mg/kg can be considered low, and those with concentrations of 0.1–0.3 mg/kg can be expected to produce molybdenum deficiencies (Adriano 2001). Six samples from the Riverina survey contained molybdenum concentrations of 0.5 mg/kg amongst 37 samples with concentrations of 0.6 mg/kg or below. There is no obvious pattern to the location of low molybdenum concentrations (figure 6). Molybdenum has lower bioavailability in acid soils, so those in the southeast are more likely to be prone to deficiencies. This corresponds to observations by farmers that soils in the south of the study area were molybdenum deficient and that fertiliser applications reversed this problem (C. Simpson, pers. comm., December 2004).

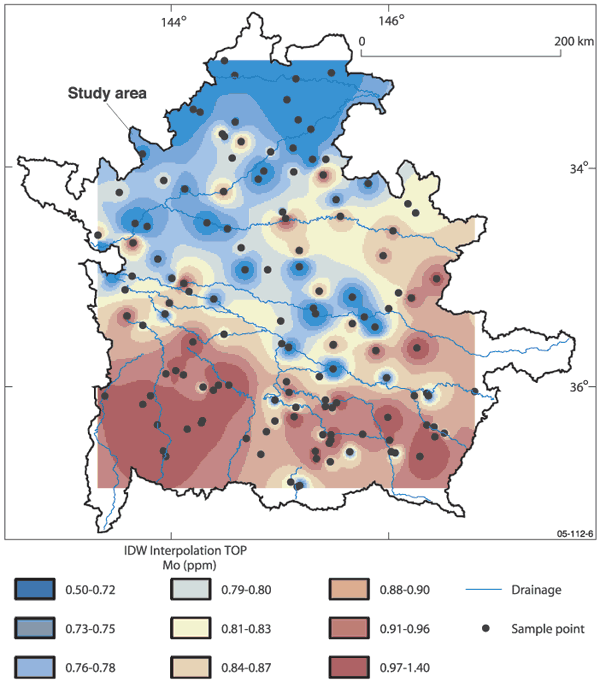

Figure 6. Geochemical map of total molybdenum (ppm) in TOP Riverina overbank sediment samples



Figure 6. Geochemical map of total molybdenum (ppm) in TOP Riverina overbank sediment samples (analysed by ICP-MS).(Larger image [GIF 33Kb])

Conclusions

Australia is one of few developed nations without nationwide baseline geochemical information at the disposal of government, industry, landholders and the general public.

The results of the Riverina survey illustrate how low-density geochemical surveys convey information about regional patterns in soil quality, mineral prospectivity and potential geohealth risk. Ongoing interpretation of this data will provide information on chemical element residence and mobility in the environment.

Pilot projects such as the Riverina geochemical survey contribute to establishing and fine-tuning sampling and analytical protocols that can ultimately be applied at the national scale.





For more information phone Patrice de Caritat on +61 2 6249 9378 or email Patrice de Caritat@ga.gov.au


The authors

Patrice de Caritat’s contribution to this project was funded by CRC LEME and Geoscience Australia. Megan Lech, Subhash Jaireth and John Pyke are researchers with Geoscience Australia, where Ian Lambert is a Group Leader.

Acknowledgments

This collaborative study was funded by an Australian Government Cooperative Research Centre grant to CRC LEME and by Geoscience Australia. We thank Ben Ackerman, Matt Lenahan, Peter Taylor and Saif Ullah for their assistance in the field and all property owners for permission to collect the samples. Alex Hickey, Marty Young and Yamin Zhou helped with sample preparation, while Bill Papas, Liz Webber and Aleksandra Plazinska provided assistance in the laboratory.

References

Adriano DC. 2001. Trace Elements in Terrestrial Environments—Biogeochemistry, Bioavailability, and Risks of Metals. Second edition, Springer–Verlag, New York, 867 pp.

Caritat P de, Jaireth S, Lech M & Pyke J. 2004. Regional geochemical surveys: Riverina pilot project—methodology and preliminary results. Cooperative Research Centre for Landscape Environments and Mineral Exploration, Open File Report, 160, 156 pp. + CD-ROM. Available from: http://www.crcleme.org.au/Pubs/OFR160/CRCLEME.OFR160.pdf

Darnley AG, Björklund A, Bølviken B, Gustavsson N, Koval PV, Plant JA, Steenfelt A, Tauchid M, Xuejing X, Garrett RG & Hall GEM. 1995. A Global Geochemical Database for Environmental and Resource Management. Recommendations for International Geochemical Mapping, Final Report of IGCP Project 259. UNESCO Publishing, 122 pp.

Garrett RG & Nichol I. 1967. Regional geochemical reconnaissance in eastern Sierra Leone. Transactions of the Institution of Mining and Metallurgy, B76:97–112.

Gustavsson N, Bølviken B, Smith DB & Severson RC. 2001. Geochemical landscapes of the conterminous United States—new map presentations for 22 elements. U.S. Geological Survey Professional Paper 1648, 38 pp.

Lambert JA, Elix JK, Chenowith A & Cole S. 1995. Bioregional planning for biodiversity conservation. Approaches to Bioregional Planning, Part 2. Background Papers to the Conference, 30 October – 1 November 1995, Melbourne. Available from: http://www.deh.gov.au/biodiversity/publications/series/paper10/pubs/elix.pdf

Li Jiaxi & Wu Gongjian (Chief Compilers). 1999. Atlas of the Ecological Environmental Geochemistry of China. Geological Publishing House, Beijing, China, 209 pp.

Maisto G, Alfani A, Baldantoni D, De Marco A & Virzo De Santo A. 2004. Trace metals in the soil and in Quercus ilex L. leaves at anthropic and remote sites of the Campania Region of Italy. Geoderma, 122:269–279.

Nichol I, Garrett RG & Webb JS. 1966. Studies in regional geochemistry. Transactions of the Institute of Mining and Metallurgy, B75:106–107.

NSW DPI. 2005. Murray–Riverina Airborne Geophysical Survey. New South Wales Department of Primary Industries. Available from: http://www.minerals.nsw.gov.au/prodServices/mapsDigitalData/geophysData2/murray__riverina_airborne

NSW EPA. 1997. Environmental Management Guidelines—Use and Disposal of Biosolids Products. New South Wales Environment Protection Agency (NSW EPA), 107 pp.

Ottesen RT, Bogen J, Bølviken B & Volden T. 1989. Overbank sediment: a representative sample medium for regional geochemical sampling. Journal of Geochemical Exploration, 32:257–277.

Plant JA, Reeder S, Salminen R, Smith DB, Tarvainen T, De Vivo B & Petterson MG. 2003. The distribution of uranium over Europe: geological and environmental significance. Applied Earth Science, 112:221–238.

Reedman AJ & Gould D. 1970. Low sample-density stream sediment surveys in geochemical prospecting: an example from northeast Uganda. Transactions of the Institution of Mining and Metallurgy, B79:246.

Reimann C & Caritat P de. 1998. Chemical Elements in the Environment—Factsheets for the Geochemist and Environmental Scientist. ISBN 3-540-63670-6. Springer–Verlag, Berlin, Germany, 398 pp.

Reimann C, Äyräs M, Chekushin V, Bogatyrev I, Boyd R, Caritat P de, Dutter R, Finne TE, Halleraker JH, Jæger Ø, Kashulina G, Lehto O, Niskavaara H, Pavlov V, Räisänen ML, Strand T & Volden T. 1998. Environmental Geochemical Atlas of the Central Barents Region. ISBN 82-7385-176-1. NGU–GTK–CKE Special Publication, Geological Survey of Norway, Trondheim, Norway, 745 pp.

Reimann C, Siewers U, Tarvainen T, Bityukova L, Eriksson J, Gilucis A, Gregorauskiene V, Lukashev VK, Matinian NN & Pasieczna A. 2003. Agricultural Soils in Northern Europe: A Geochemical Atlas. Geologisches Jahrbuch Sonderhefte, Reihe D, Heft SD5, 279 pp.

Thalmann F, Schermann O, Schroll E & Hausberger G. 1989. Geochemischer Atlas der Republik Österreich (Textteil and kartenteil). Geologische Bundesanstalt, Rasumofskygasse 23, A-1031 Wien, Österreich.

Velleman PF & Hoaglin DC. 1981. Applications, Basics and Computing of Exploratory Data Analysis. Duxbury Press, Boston, Mass, USA.

WA DOE. 2003. Western Australian Department of the Environment Assessment Levels for Soil, Sediment and Water—Draft for Public Comment. In: Contaminated Sites Management Series, 31 pp. Available at: http://portal.environment.wa.gov.au/pls/portal/docs/PAGE/DOE_ADMIN/GUIDELINE_REPOSITORY/ASSESSMENT LEVELS FOR SOIL%2C SEDIMENT AND WATER.PDF
