Mawson GPS Station, Antarctica
Australian Regional GPS Network
[back to top]
Station Identification
| Station Name |
MAWSON |
Station Number |
AUS064 |
| 4 Character ID |
MAW1 |
DOMES Number |
66004M001 |
[back to top]
Station Coordinates
| Datum |
ITRF96 - Epoch of 1998.0 |
| Latitude |
S67° 36' 17".15894 |
Longitude |
E062° 52' 14".57572 |
| Observed Ellipsoid Height |
59.148 metres |
| X |
1111287.185 |
Y |
2168911.276 |
| Z |
-5874493.603 |
| Grid System |
UTM - GRS 80 |
Grid Zone |
41 |
| Easting |
0494503.283 |
Northing |
2501193.910 |
| Geoid Separation (EGM96) |
29.79 metres |
MSL Height |
32.473 metres |
[back to top]
Station Equipment
| Receiver |
TurboRogue® ICS-4000Z ACT |
| Antenna |
AOA Dorne Margolin T |
[back to top]
Site Information

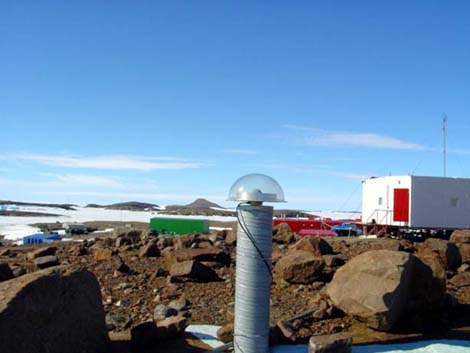

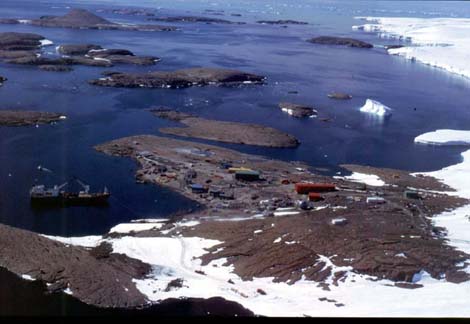

MAW1 Station mark [jpg_34k] is the centre of a 5/8 inch threaded spigot centred on a brass pillar plate of 5/8 inch diameter. The plate is centrally secured into a 300 mm diameter, 1.4 metre high concrete pillar. The site is located on the highest rocky ground at Mawson Antarctic Research Station adjacent to the Coray building.
[back to top]
Station Information
[back to top]
|
