2.3.2 Canals

2.3.2.2 Example 2

Location of Example: 152°52'19" East, 25°22'57" South
Distinctive Characteristics:
  • Drains/Canals can be differentiated from Roads as they do not provide connectivity to the existing road network.
  • In Figure: 2.3.2.2b note that the upper part of the drain near the water source gives off a light blue signature, indicating presence of water. The drain terminates at the water tank which also shows the same water signature.
  • If the Drain/Canal is completely dry it will appear lighter, similar to the surrounding soil and vegetation. The edges will often appear much lighter, due to the excavated soil from construction.
  • Drains generally start at a water source and can end at a Reservoir, Dam or Sea.
  • Drains follow the topography of the land whereas roads may traverse hills and valleys.
  • The use of multispectral imagery band combinations can aid in the interpretation and differentiation of water.
Regional Considerations:
Figure: 2.3.2.2 Representation of Canals

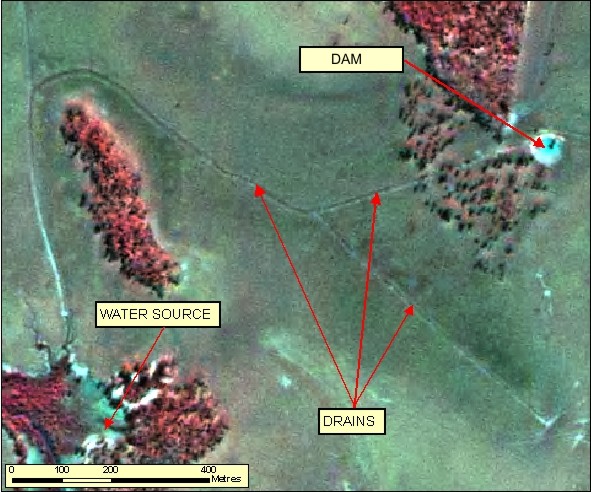

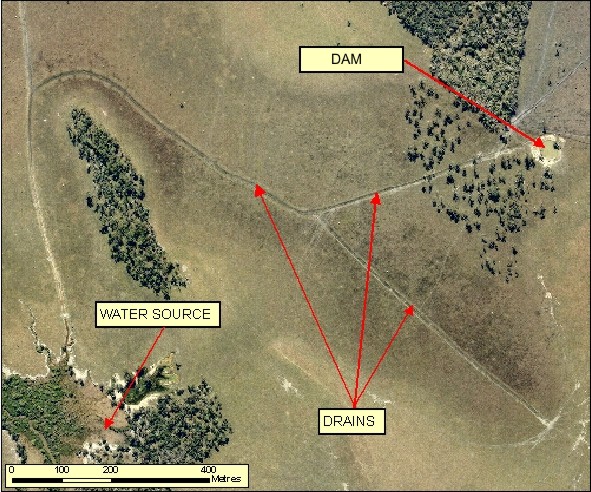

Figure: 2.3.2.2a Orthophotography 60cm RGB=123 Figure: 2.3.2.2b SPOT 2.5m RGB=123
