2.3.5 Dams

2.3.5.2 Example 2

Location of Example: 144°51'59" East, 28°20'30" South
Distinctive Characteristics:
  • Dams can be differentiated from vegetation on thematic imagery by their blue signature compared with the red signature of the vegetation.
  • Dams can also be identified by the surrounding earth which was disturbed or displaced during the construction of the Dam. This can aid in distinguishing dry dams from depressions.
  • Spectral response may also indicate the presence of water even in a dry dam. In Figure 2.3.5.2b the SPOT imagery indicates a presence of the water with the light blue signature.
  • Dam Walls can be placed across a natural watercourse to form a Town Rural Storage Reservoir upstream. These type of Reservoirs can be seen by the drying of the natural watercourse downstream and the Dam Wall extending beyond the width of the natural watercourse.
Regional Considerations:
Figure: 2.3.5.2 Representation of Dams

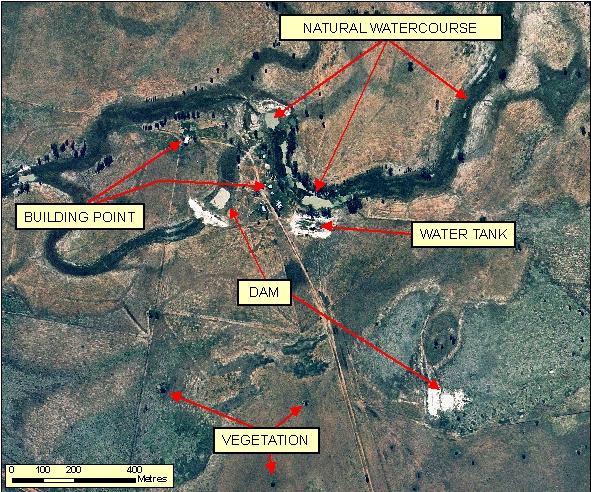

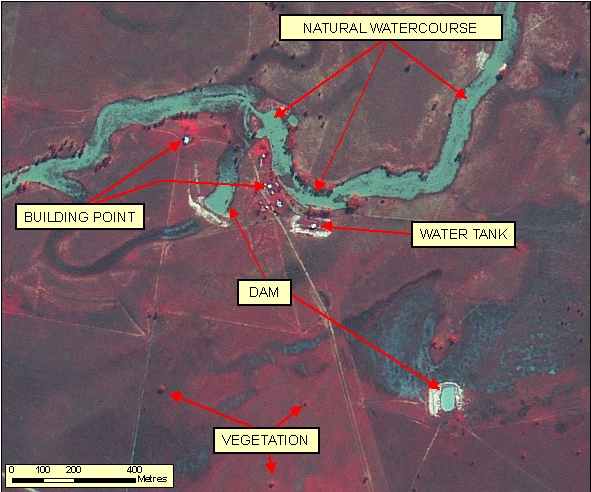

Figure: 2.3.5.2a Orthophotography 60cm RGB=123 Figure: 2.3.5.2b SPOT 2.5m RGB=123
