Synchronising clocks in rocks

Geoff Fraser

Refined isotopic decay measures increase dating accuracy

Time information is fundamental to most geological studies, particularly in guiding resource exploration, because the date of a geological process can be crucial to assessing its potential to form mineral deposits.

In most cases the only quantitative measure of time is natural radioactive decay. Isotopic decay measures in common use in geochronology include measures of the decay of uranium to lead (U–Pb), potassium to argon (K–Ar), rubidium to strontium (Rb–Sr), and rhenium to osmium (Re–Os).

Each provides an independent geological ‘clock’ with specific advantages and limitations, and can provide timing constraints on different geological processes. Consequently, application of multiple geochronological methods can often provide more complete understanding than the use of any single method.

Geoscience Australia’s geochronology toolkit has been augmented since 2001 by the argon40/argon39 method—a variant of the K–Ar method. The 40Ar/39Ar method complements Geoscience Australia’s long-established strength in U–Pb SHRIMP zircon geochronology by providing timing information from different minerals and for different geological processes.

For example, the 40Ar/39Ar method can be used to:

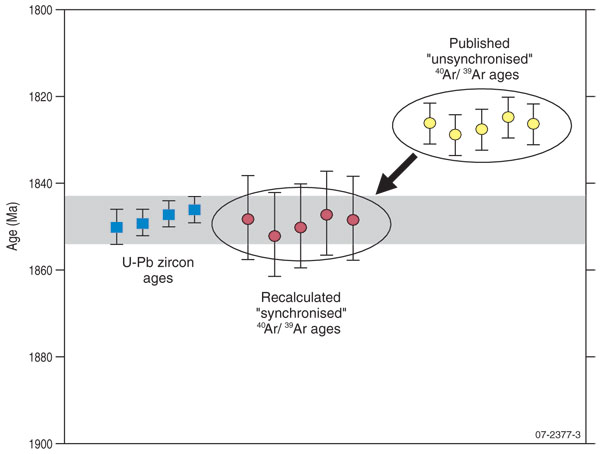

Fig 1. Isotopic age constraints for Au–Cu mineralisation at Tennant Creek, showing the effect of recalculating published 40Ar/39Ar ages using a revised potassium decay constant.

This information is most useful when integrated with U–Pb zircon ages from magmatic rocks to reconstruct a more complete sedimentary, magmatic, metamorphic and metallogenic history of a terrane.

Figure 1. Isotopic age constraints for Au–Cu mineralisation at Tennant Creek, showing the effect of recalculating published 40Ar/39Ar ages using a revised potassium decay constant derived via intercalibration with the U–Pb timescale (Kwon et al 2002). (Larger image [JPG 355kb]).

However, when comparing geological ages derived from contrasting isotopic methods (for example, U–Pb versus 40Ar/39Ar), it must be recognised that each of these methods involves inherent uncertainties related to decay constants, the age and homogeneity of standards, and other physical parameters. At best, these so–called external uncertainties create ‘fuzzy’ ages and, if not properly accounted for, can lead to misleading geological interpretations.

One approach to improving the current situation is to calibrate the 40Ar/39Ar timescale against the U–Pb timescale based on careful comparisons of 40Ar/39Ar and U–Pb ages from volcanic rocks. Such intercalibration is the subject of ongoing international research, and the existing dataset indicates that the two timescales may be offset by almost 1% (for example, Min et al 2000, Villeneuve et al 2000, Kwon et al 2002).

In simple terms, the clocks are not perfectly synchronised. While a 1% offset may not sound like much, in Palaeo– and Mesoproterozoic rocks this translates to age offsets in the order of 15 to 20 million years.

Several geochronological studies carried out at Geoscience Australia over recent years illustrate the importance of improved synchronisation of the U–Pb and 40Ar/39Ar isotopic clocks. For example, discrepancies in 40Ar/39Ar and U–Pb ages for Au–Cu mineralisation at Tennant Creek have been problematic for the past decade, and have led to contrasting interpretations (Compston & McDougall 1994, Wyborn et al 1998). Reconsideration of the published 40Ar/39Ar ages in the light of improved synchronisation of the isotopic clocks reconciles the apparent discrepancy between 40Ar/39Ar and U–Pb ages (figure 1 and Fraser et al, submitted). In turn, this allows more confident interpretation of the timing of Au–Cu mineralisation and its association with local magmatic rocks, with particular mineral exploration implications.

Similar examples exist in relation to tin–tungsten–tantalum mineralisation in the Davenport Ranges region, south of Tennant Creek, and gold mineralisation in the central Gawler Craton. In each of these examples, improved synchronisation of the 40Ar/39Ar and U–Pb isotopic clocks provides improved timing relationships between mineralisation and magmatism.

Ongoing international research to improve the synchronisation of isotopic clocks is expected to provide further improvements in geological applications of geochronology.

For more information phone Geoff Fraser on +61 2 6249 9063 (email geoff.fraser@ga.gov.au)

References

  1. Compston DM & McDougall I. 1994. 40Ar/39Ar and K–Ar age constraints on the Early Proterozoic Tennant Creek Block, northern Australia, and the age of its gold deposits. Australian Journal of Earth Sciences 41:609–616.
  2. Fraser GL, Hussey K & Compston DH. Submitted. Timing of Palaeoproterozoic Cu–Au–Bi and W-mineralisation in the Tennant Creek region, northern Australia: Improved constraints via intercalibration of 40Ar/39Ar and U–Pb ages. Submitted to Precambrian Research.
  3. Kwon J, Min K, Bickel PJ & Renne PR. 2002. Statistical methods for jointly estimating the decay constant of 40K and the age of a dating standard. Mathematical Geology 34:4.
  4. Min K, Mundil R, Renne PR & Ludwig KR. 2000. A test for systematic errors in 40Ar/39Ar geochronology through comparison with U/Pb analysis of a 1.1–Ga rhyolite. Geochimica et Cosmochimica Acta 64:1.
  5. Villeneuve M, Sandeman H & Davis WJ. 2000. A method for intercalibration of U–Th–Pb and 40Ar/39Ar ages in the Phanerozoic. Geochimica et Cosmochimica Acta 64:23.
  6. Wyborn L, Budd A & Bastrakova I. 1998. Metallogenic potential of the felsic igneous rocks of the Tennant Creek and Davenport Provinces, Northern Territory: Is the enigma of the source of the gold at Tennant Creek resolved. AGSO Research Newsletter 29:26–28.

The author

Geoff Fraser was a Distinguished Geoscience Australia Lecturer (DGAL) for 2007, and this article is based on his DGAL presentation.
